WARTHOG-02-M Four-wheel differential shock absorption chassis(100kg)-UGV, Russia-Ukraine war unmanned combat vehicles

Product description

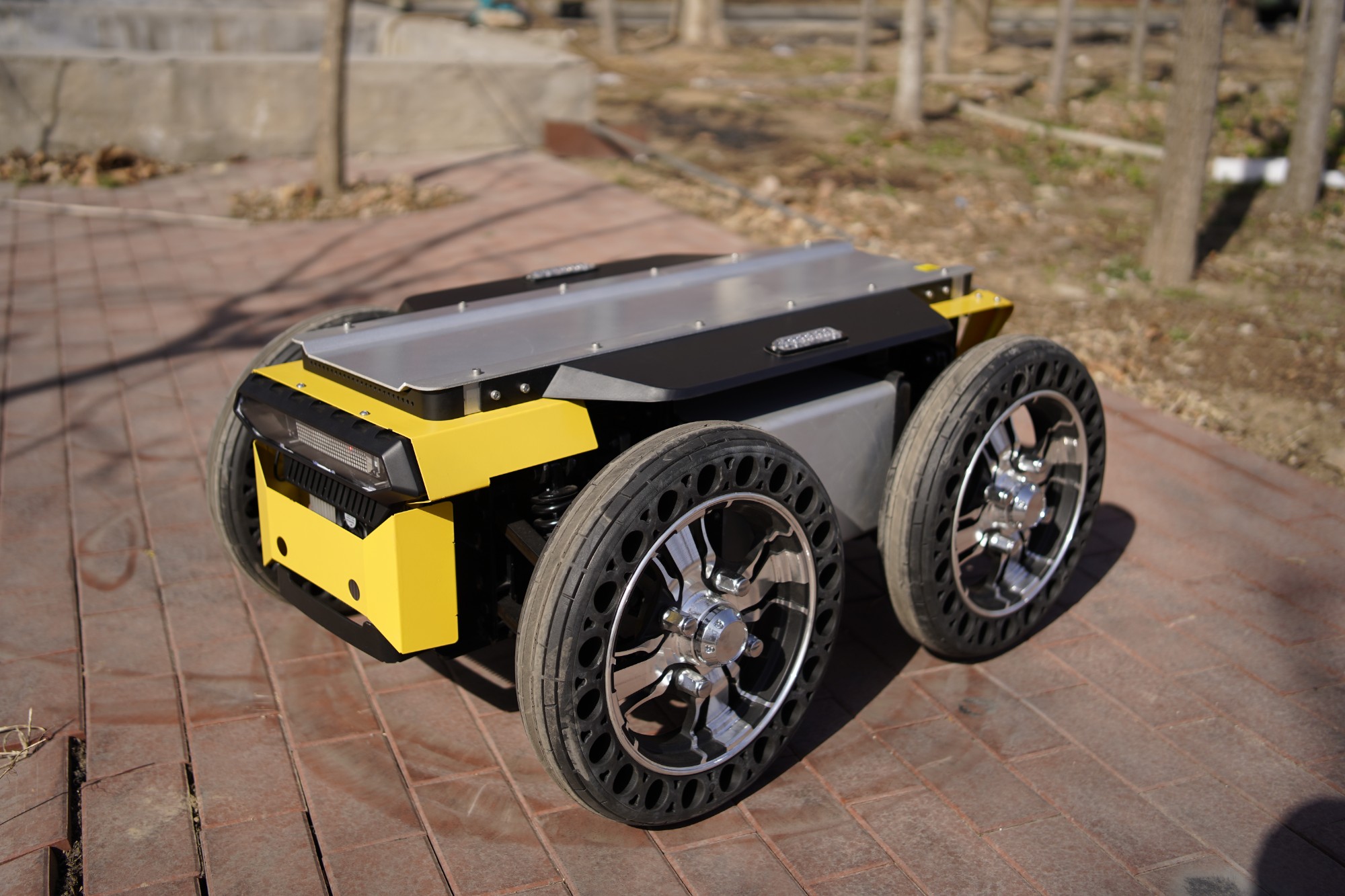

WARTHOG02 is a series of general-purpose fully functional and highly integrated wheeled robot chassis. It has a variety of customizable configurations and is capable of various working conditions. It is equipped with 4 sets of shock absorbers, independent suspension structure, and the stability and load of the whole vehicle are large. Improved, using Ackerman steering method, the whole vehicle is equipped with battery BMS system, power step-down module (can be turned 24V, 12V, 5V, etc.), DC brushless motor, driver, etc., proper chassis height and power matching, make the chassis It has the advantages of strong passability, low center of gravity, stable operation and high transmission efficiency. The chassis can be equipped with a shell according to customer needs, which has more freedom of installation and use, making later development easier and faster. This chassis is widely applicable to equipment movement solutions in various industries that require a wheeled chassis, and is particularly suitable for carrying photographic equipment and mobile robots with stability requirements, such as special robot industries such as reconnaissance, inspection, and exploration.

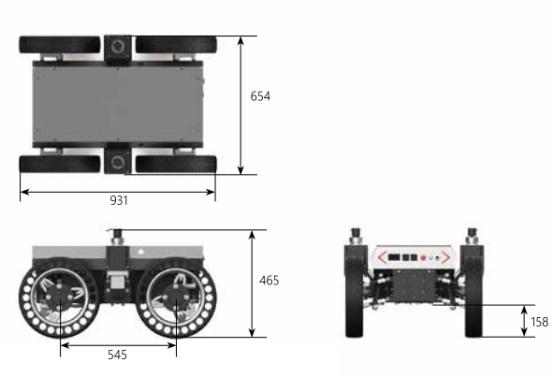

Structural parameters

Electrical parameters

Optional configuration
