Model: WARTHOG-01-S
Product Type: Wheeled robot chassis
Main material: alloy steel plate
Power supply: 24V DC brushless motor
Design size: 550*598*310mm
Weight: 40kg
Payload: 25kg
Colour: Black/Yellow

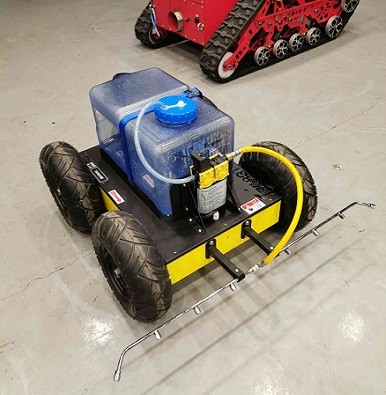

Application scenarios: Education, scientific research, inspection, development, shooting, etc.
Product description

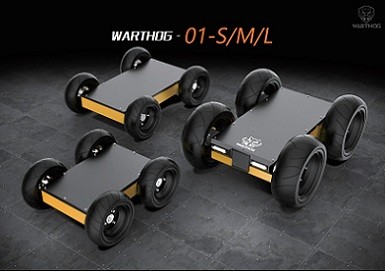

WARTHOG-S is a general-purpose highly integrated wheeled robot chassis. The whole vehicle integrates the battery, BMS system, power module (providing 24V, 12V, 5V output), DC brushless motor, high-precision encoder and driver, and brake components. Inside the chassis powertrain. The layout is tight, providing users with a broad space for development and imagination. Help you build unique robot products.
Structural parameters
ITEM | DATA | ITEM | DATA |
Design size （mm） | 550*598*310 | Inner compartment size (without battery) | 400*360 |
Chassis weight | 40KG | Running speed | 3.6km/h |
Main material | Alloy steel plate/aluminum alloy | Surface treatment | Yellow plastic spray |
Ground clearance | 110mm | Protection class | IP54 |
Steering method | Differential steering | Maximum load | 25KG |
Maximum span | 250mm | Vertical span | 90mm |
Wheelbase | 408mm | Tire diameter | 310mm |
Maximum climb | 30° | Operating temperature | -20°-- +60° |
Electrical parameters
ITEM | DATA | ITEM | DATA |
Power supply voltage | DC24V | Motor | Brushless DC motor |
Whole machine power (max) | 140W*2 | standby power | ≤50w |
Battery | 24V 20AH | Communication Interface | Standard CAN 232 Serial Port |
Brake type | Power-off brake type | Braking voltage | DC48V |
Encoder | 1024 lines | Drive model | JCDBL2430-2E |
Remote control distance | 800m (visually) | Number of remote control channels | 9T (3T used) |
Optional configuration
Main control type | VCU （Differential） | ||||||
Driver | JCDBL2430-2E | JCDBL4850-2E | JCDBL4875-2E | ||||
Battery | 24V 30AH | ||||||
Charger | 5A | ||||||
Remote control | AT9 | JC9One-handed operation | JC9Video all-in-one | Customized control box | |||
Install bracket | |||||||
Can be upgraded | Widen | Heighten | |||||
