WARTHOG-02-L-4WD Four-wheel differential shock absorption chassis(250kg)

WARTHOG-02-L-4WD Four-wheel differential shock absorption chassis(250kg)

Model: WARTHOG-02-L-4WD
Product Type: Wheeled robot chassis
Main material: stainless steel 304/alloy steel plate
Power supply: 60V DC brushless motor
Design size: 1530*1480*830mm
Weight: 480kg
Payload: 250kg
Colour: Yellow or green
Application scenarios: Special industry

Product description

The WARTHOG-02L wheeled robot chassis is capable of handling various working conditions. Equipped with 4 sets of shock absorption and independent suspension structure, the stability and load of the whole vehicle are greatly improved; the differential steering mode is adopted, and the steering is simple; the use of anti-explosive tires reduces the body weight while being maintenance-free; this chassis is particularly suitable for outdoor operations.

Structural parameters

ITEM	DATA	ITEM	DATA

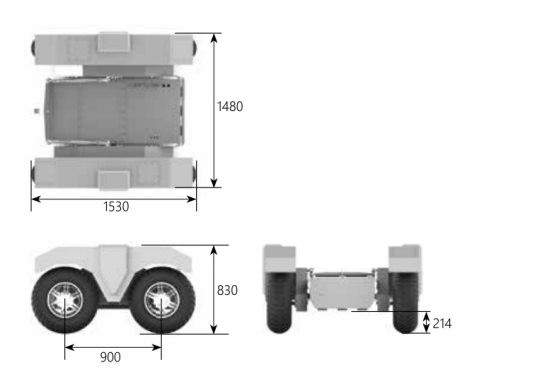

Design size （mm）	15301480830	Platform size	\
Chassis weight	480KG	Running speed	15km/h
Ground clearance	214mm	Protection class	IP64
Maximum climb	30°	Maximum load	250KG
Main material	304 stainless steel/alloy steel plate	Surface treatment	plastic spray
Operating temperature	-20°-- +60°	Rated torque	14N·M

Electrical parameters

ITEM	DATA	ITEM	DATA
Power supply voltage	DC60V	Motor	Brushless DC motor
Whole machine power (max)	3000W*2	Remote control distance	800m (visually)
Number of remote control channels	9T (3T used)	Communication Interface	Standard CAN 232 Serial Port

Optional configuration

Main control type	VCU （Differential）
Driver	JCAPT6001S
Battery	60V 160AH
Charger	30A
Remote control	AT9	JC9One-handed operation	JC9Video all-in-one	Customized control box
Install bracket
Can be upgraded	Adjust power		Heighten
