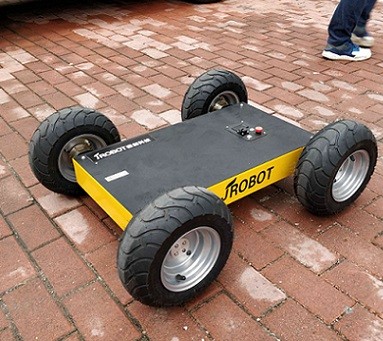

WARTHOG-01-M four-wheel differential steering(50kg)

WARTHOG-01-M four-wheel differential steering(50kg)

Model: WARTHOG-01-M
Product Type: Wheeled robot chassis
Main material: alloy steel plate
Power supply: 48V DC brushless motor
Design size: 908*708*310mm
Weight: 60kg
Payload: 50kg
Colour: Black/Yellow
Application scenarios: Education, scientific research, inspection, development, shooting, etc.

Product description

WARTHOG-M is a general-purpose highly integrated wheeled robot chassis. The whole vehicle combines the battery, BMS system, power module (providing 24V, 12V, 5V output), DC brushless motor, high-precision encoder and driver, and brake components. Inside the chassis powertrain. The layout is tight, providing users with a broad space for development and imagination. Help you build unique robot products.

Structural parameters

ITEM	DATA	ITEM	DATA
Design size （mm）	908708310	Platform size	695*384
Chassis weight	60KG	Running speed	16km/h
Main material	Alloy steel plate/aluminum alloy	Surface treatment	Yellow plastic spray
Ground clearance	98mm	Protection class	IP54
Steering method	Differential steering	Maximum load	50KG
Maximum span	250mm	Vertical span	150mm
Wheelbase	595mm	Tire diameter	310mm
Maximum climb	30°	Operating temperature	-20°-- +60°

Electrical parameters

ITEM	DATA	ITEM	DATA
Power supply voltage	DC48V	Motor	Brushless DC motor
Whole machine power (max)	500W*2	standby power	≤50w
Battery	48V 30AH	Communication Interface	Standard CAN 232 Serial Port
Brake type	Power-off brake type	Braking voltage	DC48V
Encoder	1024 lines	Drive model	JCDBL6050-2E
Remote control distance	800m (visually)	Number of remote control channels	9T (3T used)

Optional configuration

Main control type	VCU （Differential）
Driver	JCDBL2430-2E		JCDBL4850-2E			JCDBL4875-2E
Battery	48V 30AH				48V 50AH
Charger	10A				15A
Remote control	AT9	JC9One-handed operation		JC9Video all-in-one			Customized control box
Install bracket
Can be upgraded	Widen				Heighten
