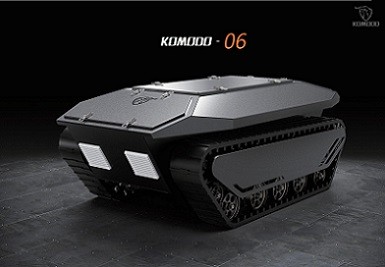

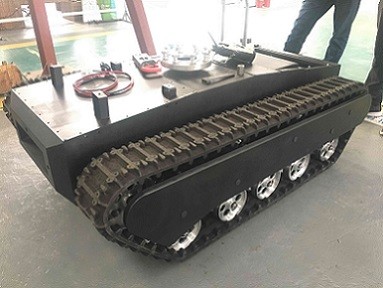

Model: KOMODO-06
Product Type: Tracked Robot Chassis
Main material: stainless steel 304/alloy steel plate
Power supply: 48V DC brushless motor
Design size: 1650*1015*491mm
Weight: 220kg
Payload: 200kg
Colour: Black
Application scenarios: reconnaissance, inspection, exploration, transportation, fire fighting, construction, etc.

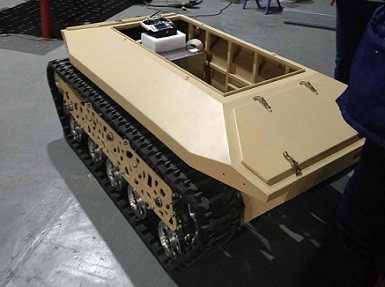

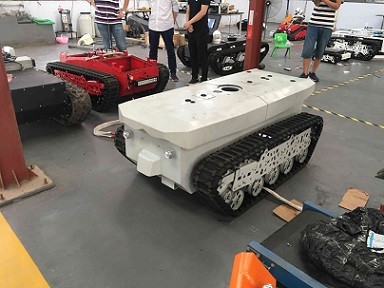

Product description
KOMODO-06 is a crawler robot chassis, equipped with 6 sets of hydraulic shock absorption, independent suspension structure, the stability of the vehicle is greatly improved in load, and it is designed to provide a stable driving platform for complex and harsh road conditions. The chassis can not only adapt to ordinary urban paving , Ceramic tile, cement pavement, the driving process will not cause any damage to the pavement. It has a very strong off-road ability for wild mountains, forests, and sand and gravel roads. It is a very comprehensive all-terrain.
Structural parameters
ITEM | DATA | ITEM | DATA |

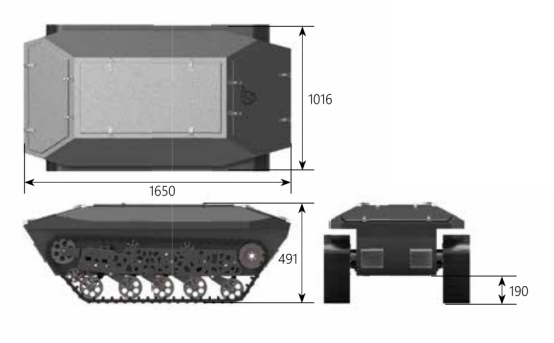

Design size （mm） | 1650*1016*491 | Inner compartment size (Without battery) | \ |
Chassis weight | 220KG | Running speed | 0--6km/h |
Ground clearance | 190mm | Protection class | IP54 |
Maximum span | 500mm | Maximum load | 200KG |
Maximum climb | 30°（Can climb stairs） | Vertical span | 200mm |
Track material | rubber (embedded with Kevlar) | width | 180mm |
Shock absorber system | Christie*6 shock absorption | Main material | 304 stainless steel/alloy steel plate |
Surface treatment | black plastic spraying (frosted) | Driving wheel diameter | \ |
Operating temperature | -20°-- +60° | Drive form | Left and right independent drive Track differential steering |
Electrical parameters
ITEM | DATA | ITEM | DATA |
Power supply voltage | DC48V | Motor | Brushless DC motor |
Whole machine power (max) | 2000W*2 | standby power | ≤50w |
Battery | 48V 50AH | Communication Interface | Standard CAN 232 Serial Port |
Brake type | Power-off brake type | Braking voltage | DC48V |
Encoder | 1024 lines | Drive model | JCDBL6075-2E |
Remote control distance | 500m (visually) | Number of remote control channels | 9T (3T used) |
Optional configuration
Main control type | VCU （Differential） | ||||||||
Driver | JCDBL6075-2E | JCDBL60150-1E | JCDBL60150-2E | ||||||
Battery | 48V 80AH | Maximum capacity customization 100AH | |||||||
Charger | 10A | 15A | 30A | ||||||
Remote control | AT9 | JC9One-handed operation | JC9Video all-in-one | Customized control box | |||||
Install bracket | |||||||||
Can be upgraded | Heighten | ||||||||
