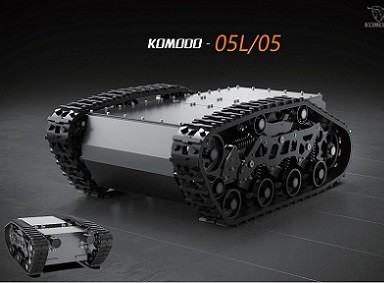

KOMODO05L tracked robot chassis (300kg)

Model: KOMODO-05L
Product Type: Tracked Robot Chassis
Main material: stainless steel 304/alloy steel plate
Power supply: 48V DC brushless motor
Design size: 1415*945*518mm

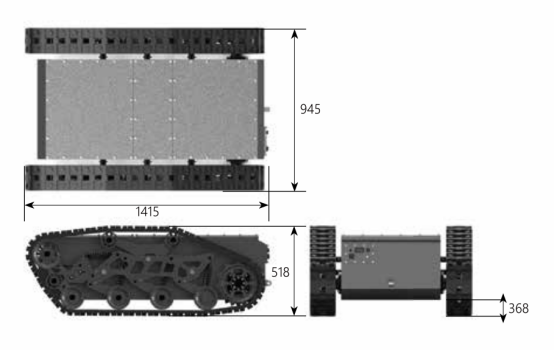

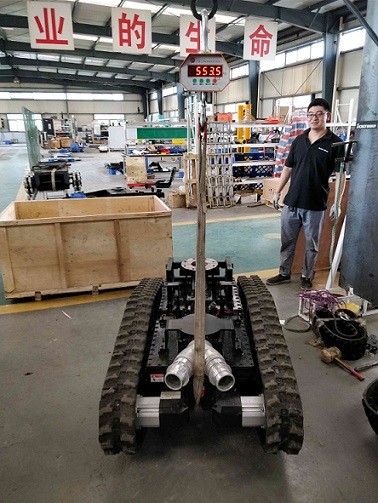

Weight: 390kg
Payload: 300kg
Colour: Black
Application scenarios:fire protection, inspection, explosion-proof, explosion-proof, transportation, construction, etc.

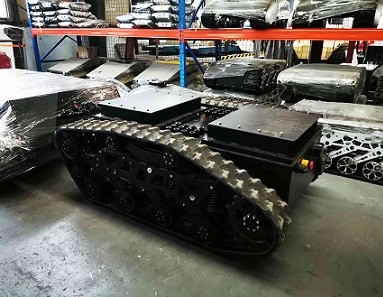

Product description

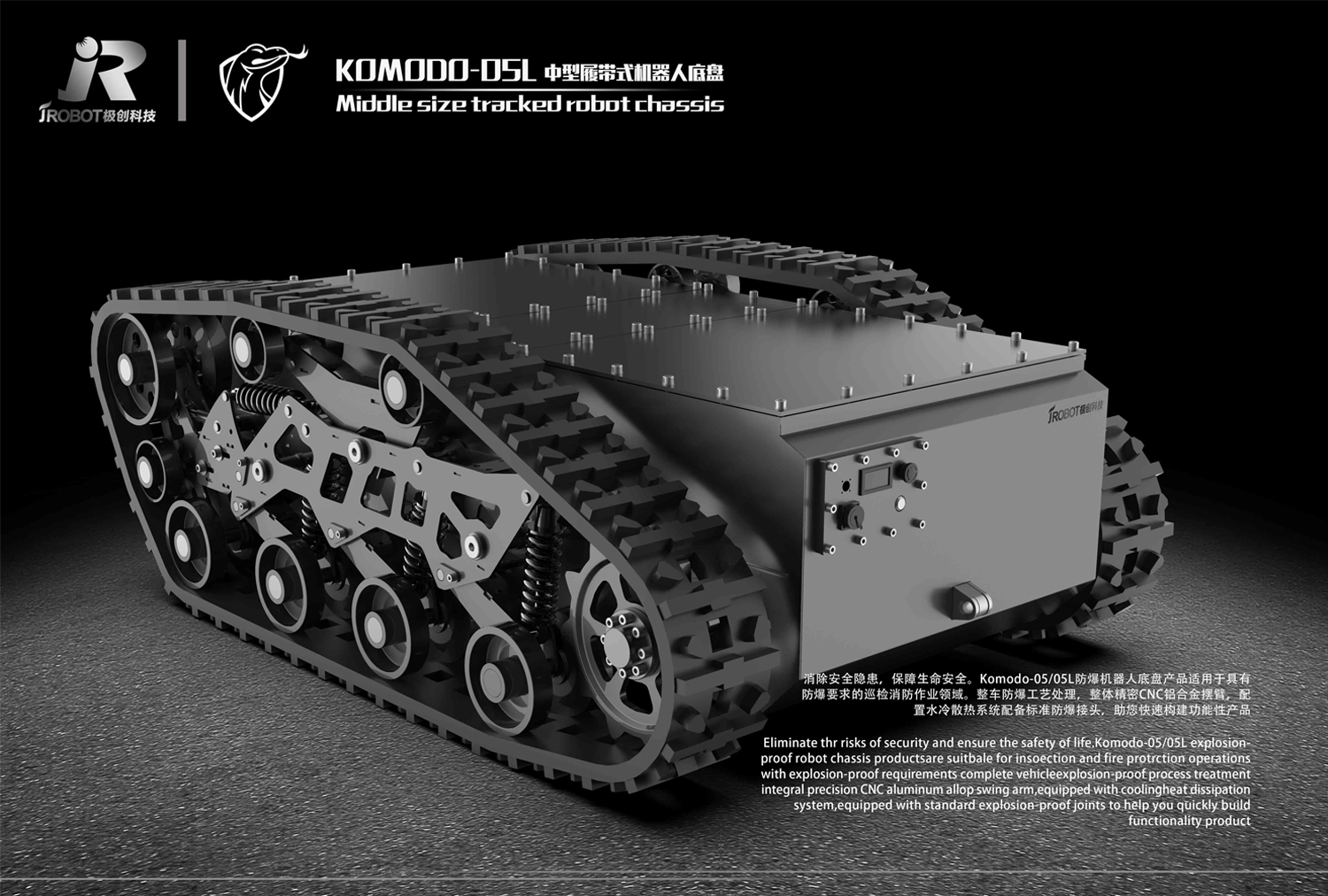

KOMODO-05L is a universal crawler robot chassis. The whole vehicle adopts Christie's fully independent suspension design. It adopts engineering hole-driven crawler. It is equipped with a high-torque brushless motor inside. The appropriate chassis height and power match make the vehicle passability. Strong, low center of gravity, stable operation and high transmission efficiency. It is suitable for equipment mobile carrying solutions in various industries, especially suitable for carrying heavier equipment and mobile robots with high off-road requirements, such as: special transportation, investigation, inspection, and exploration , Fire protection and other special robot industries.

Structural parameters

ITEM	DATA	ITEM	DATA
Design size （mm）	1450740585 (Subject to specific version)	Reducer	Precision planet
Chassis weight	200KG	Running speed	0--6km/h
Ground clearance	150mm	Protection class	IP64
Maximum span	400mm	Maximum load	300KG
Maximum climb	30°（Can climb stairs）	Vertical span	200mm
Track material	rubber (embedded with Kevlar)	width	150mm
Shock absorber system	Christie*8 shock absorption	Brake	Electromagnetic ionizing brake type
Surface treatment	black plastic spraying (frosted)	Driving wheel diameter	160mm
Rated torque	380N·M	Ultimate traction	＞7000N
Operating temperature	-20°-- +60°	Drive form	Left and right independent drive Track differential steering

Electrical parameters

ITEM	DATA	ITEM	DATA
Power supply voltage	DC48V	Motor	Brushless DC motor
Whole machine power (max)	3000W*2	standby power	≤50w
Battery	48V 80AH	Communication Interface	Standard CAN 232 Serial Port
Brake type	Power-off brake type	Braking voltage	DC48V
Encoder	1024 lines	Drive model	JCDBL60150-1E
Remote control distance	RC500m (visually)	Number of remote control channels	9T (3T used)

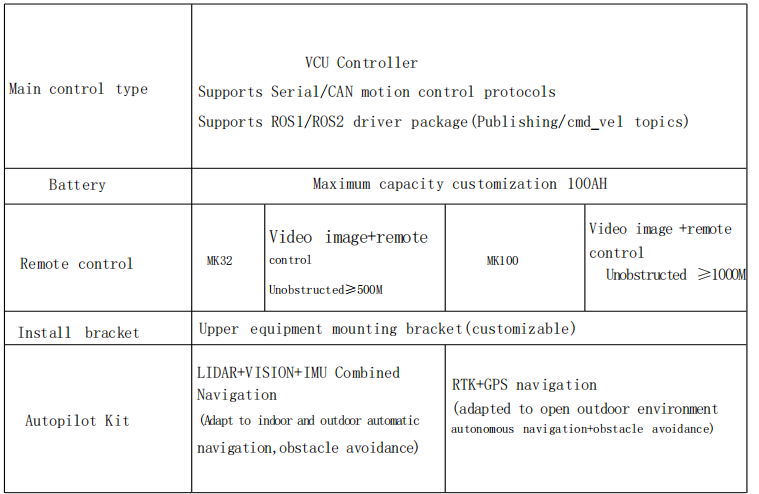

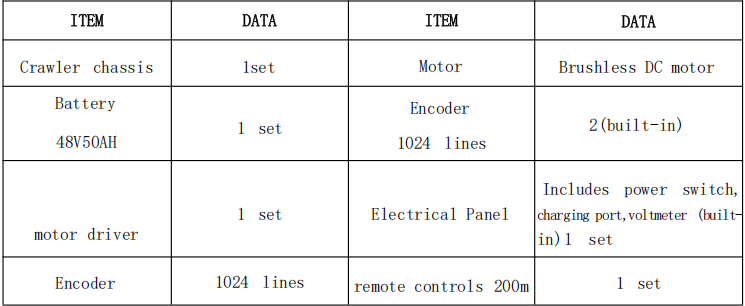

Optional configuration

Main control type	VCU （Differential）
Driver	JCDBL60150-1E					JCDBL60150-2E
Battery	48V 100AH					Maximum capacity customization 150AH
Charger	10A		15A				30A
Remote control	AT9	JC9One-handed operation			JC9Video all-in-one				Customized control box
Install bracket
General purpose	Standard					Explosion proof
Can be upgraded	Widen			Heighten				Adjust power
