Model: WT-500
Product Type: Tracked Chassis
Main material: stainless steel 304
Power supply: 12V DC brush motor
Design size: 500*300*105mm
Weight:8.5kg
Payload: 20kg
Colour: Black
Application scenarios: Education and teaching development, engineering prototype development
Product description

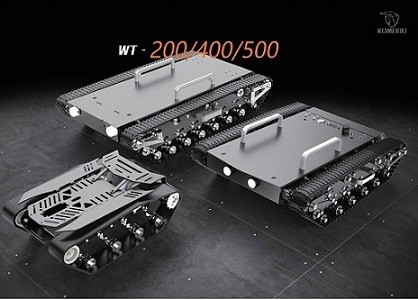

Adhering to the design concept of the WT series, it pursues excellent shock-absorbing performance and shock-absorbing performance. The WT500 is densely packed with more shock-absorbing wheels, with greater load-bearing capacity, greater space, and greater power. The chassis can be used for educational and teaching robot development, engineering prototype development, and small crawler robot development.
Structural parameters
ITEM | DATA | ITEM | DATA |
Design size （mm） | 500*300*105 | Inner compartment size (without battery) | 380*180*50 |
Chassis weight | 8.5KG | Running speed | 0--1m/s |
Maximum span | 100mm | Maximum load | 20KG |
Maximum climb | 30° | Track material | Zinc alloy |
Surface treatment | Electrostatic spray (bright white, matte black) | Main material | 304 stainless steel |
Electrical parameters
ITEM | DATA | ITEM | DATA |
Power supply voltage | DC12V | Motor | Brushed DC motor |
Whole machine power (max) | 40W*2 | Braking voltage | DC12V |
Battery | 12V 20AH | Remote control distance | 500m (visually) |
Optional configuration
Main control type | ---- | ||
Driver | Electric regulation | ||
Battery | 12V 20AH | 12V 30AH | |
Charger | 3A | 5A | |
Remote control | AT9 | JC9One-handed operation | |
Install bracket | |||
Can be upgraded | Widen | Heighten | |
