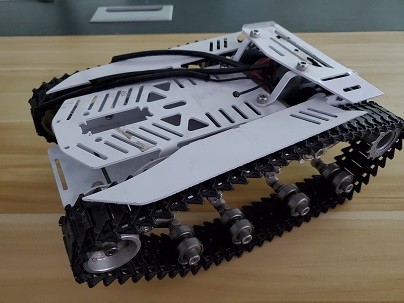

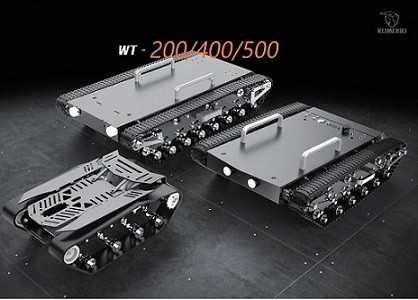

Model: WT-200
Product Type: Tracked Chassis
Main material: stainless steel 304
Power supply: 6V DC brush motor
Design size: 290*190*110mm
Weight: 2.95kg
Payload: 4kg
Colour: Black
Application scenarios: Education and teaching development, engineering prototype development
Structural parameters
ITEM | DATA | ITEM | DATA |
Design size （mm） | 290*180*40 | Inner compartment size (without battery) | 90*180*40 |
Chassis weight | 2.95KG | Running speed | 0--0.8m/s |
Maximum span | 30mm | Maximum load | 4KG |
Maximum climb | 30° | Track material | plastic |
Surface treatment | Electrostatic spray (bright white, matte black) | Main material | 304 stainless steel |
Electrical parameters
ITEM | DATA | ITEM | DATA |
Power supply voltage | DC6V | Motor | Brushed DC motor |
Whole machine power (max) | 18.6W*2 | Remote control distance | 500m (visually) |
