Model: KOMODO-12
Product Type: Tracked Robot Chassis
Main material: stainless steel 304/alloy steel plate
Power supply: 320V DC brushless motor
Design size: 3000*1600*1000mm
Weight: 1800kg
Payload: 350kg
Colour: Black
Application scenarios:Special industry
Product description

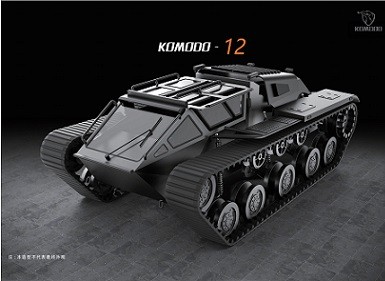

Komodo-12 is a large electric tracked chassis. The whole vehicle adopts vehicle-grade power unit, equipped with 2 sets of 30KW 320V DC electric drive assembly, with a rated torque of 100 Nm, a two-speed gearbox, a combination of 1:6/1:10, supporting a curb weight of 1800KG, climbing 32°, The fastest speed can reach 30KM/H. It adopts independent suspension and matching friction rubber belt. The obstacle height is 200mm, the trench width is 600mm, the wading depth is 300mm, and the ground clearance is 250mm. The battery pack uses 320v power supply, the rated capacity is 32KW/H, and the maximum supports 2C fast charging.
Structural parameters
ITEM | DATA | ITEM | DATA |

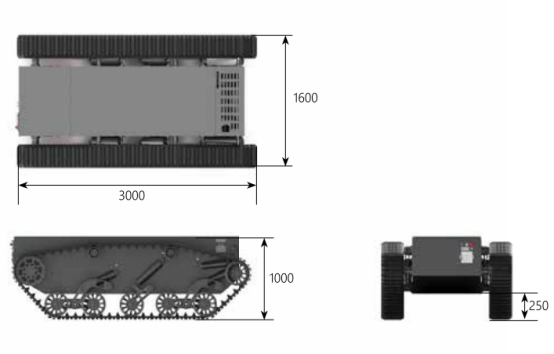

Design size （mm） | 3000*1600*1000 | Charging rate | 2C |
Chassis weight | 1800KG | Running speed | 0--30km/h |
Ground clearance | 250mm | Protection class | IP65 |
Maximum span | 600mm | Maximum load | 350KG |
Maximum climb | 32° | Vertical span | 200mm |
Wading width | 300mm | Maximum roll angle | 20° |
Track material | High-speed ASV rubber friction belt | Maximum acceleration | 10s，0-30km/h |
Shock absorber system | Matilda/Christie Independent shock absorber | Maximum braking distance | 15m |
Powertrain cooling method | water | Transmission ratio | 1：6/1：10Double speed |
Operating temperature | -20°-- +55° | Turning radius | Rotate in place |
Electrical parameters
ITEM | DATA | ITEM | DATA |
Power supply voltage | DC320V | Motor | Brushless DC motor |
Whole machine power (max) | 32KW*2 | Braking voltage | DC320V |
Battery | 320V 100AH | Communication Interface | Standard CAN 232 Serial Port |
Remote control distance | 800m (visually) | Number of remote control channels | \ |
Optional configuration
Main control type | VCU （Differential） | ||||
Driver | JCAPT14A020 | ||||
Battery | 320V 100AH | ||||
Charger | 20 | Adjustable power supply | |||
Remote control | AT9 | JC9One-handed operation | JC9Video all-in-one | Customized control box | |
Install bracket | |||||
Can be upgraded | Widen | Heighten | Increase power | ||
