Model: JC-600L
Product Type: Tracked Robot Chassis
Main material: stainless steel 304/alloy steel plate
Power supply: 24V DC brushless motor
Design size: 775*480*180mm
Weight: 20kg
Payload: 15kg
Colour: Black
Application scenarios: Investigation, image transmission
Product description

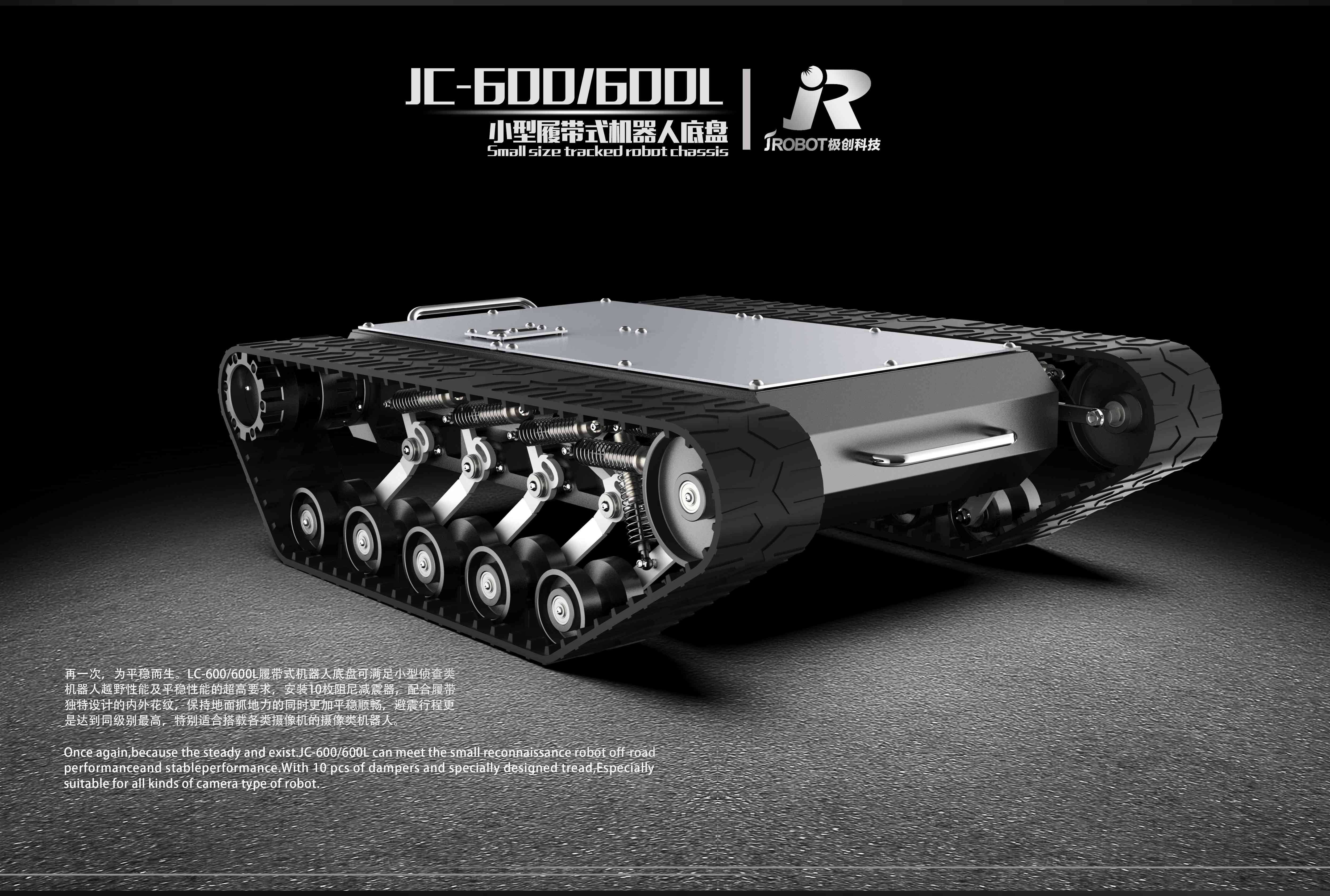

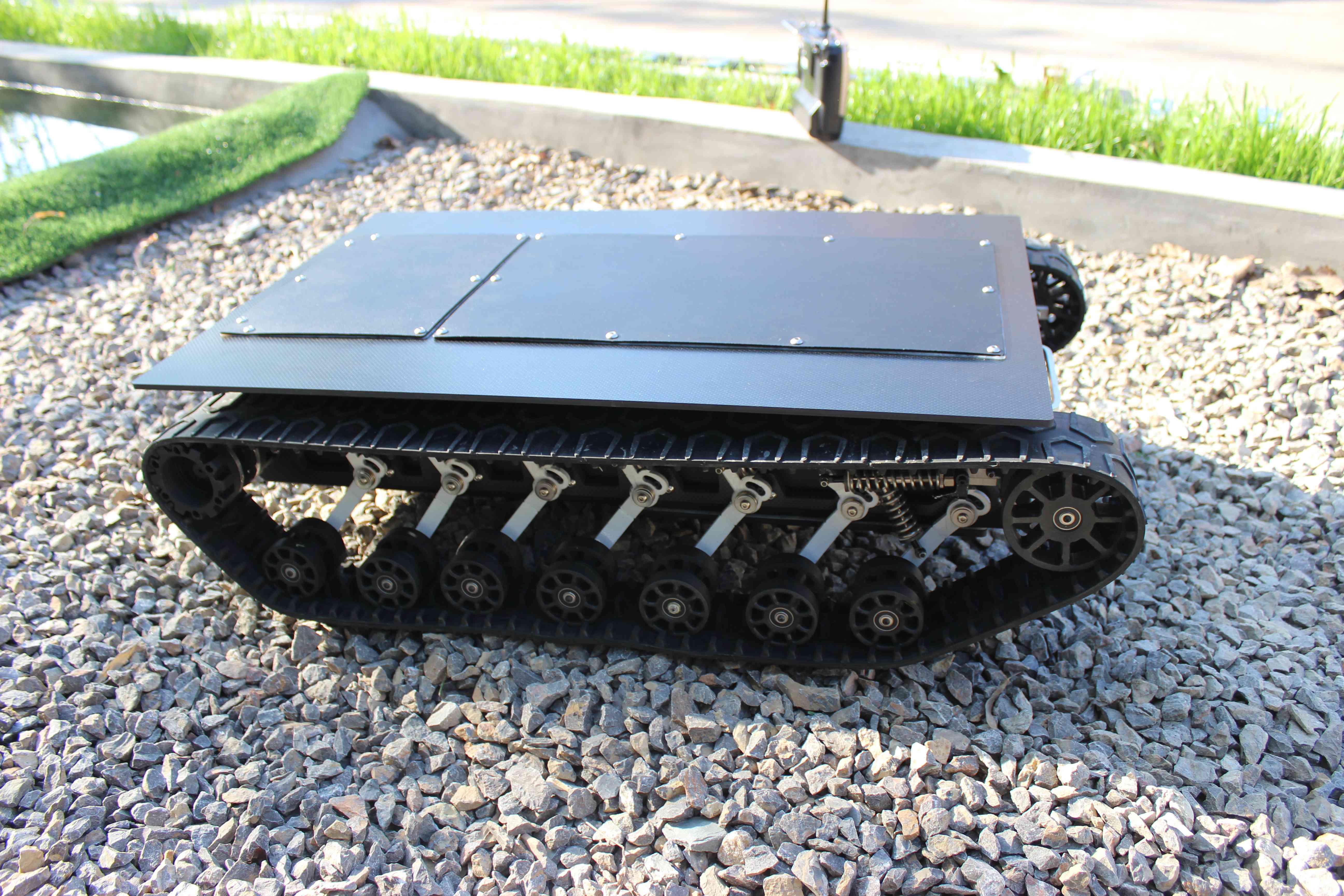

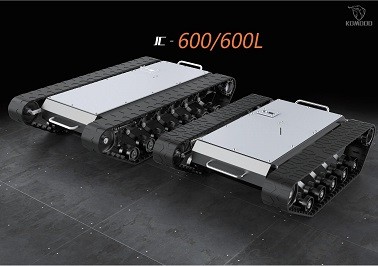

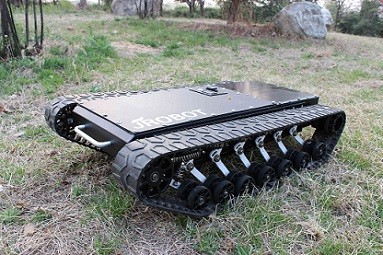

JC-600L is a small crawler robot chassis that can meet the ultra-high requirements of small reconnaissance robots' off-road performance and stability. It is equipped with 12 hydraulic damping shock absorbers and is matched with the uniquely designed internal and external patterns of the crawler to maintain ground grip while maintaining ground grip. To ensure that it has a smoother passing performance, and the shock-absorbing stroke reaches the highest of the company's chassis of the same level, it is especially suitable for carrying video capture and vision system-type surveillance camera robots. Once again, JC-600 is born for stability.
Structural parameters
ITEM | DATA | ITEM | DATA |

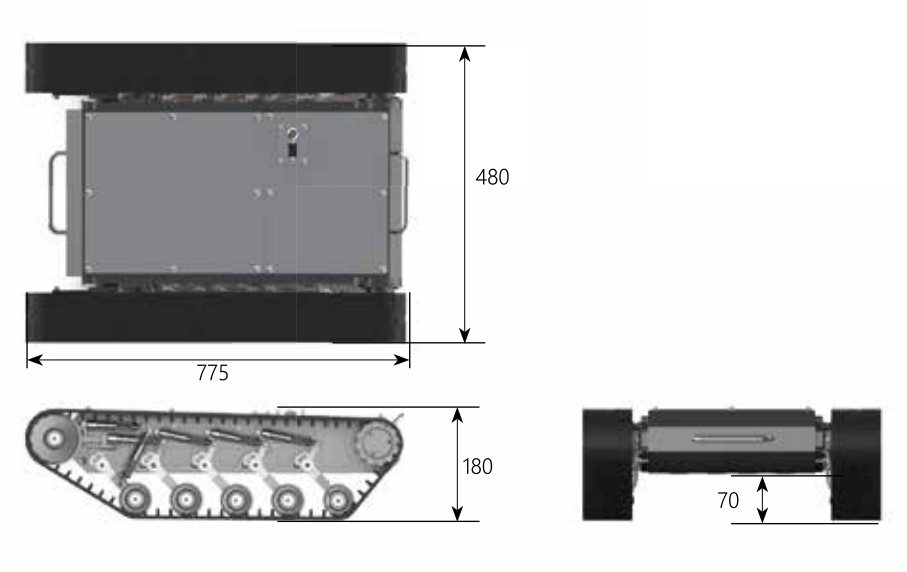

Design size （mm） | 775*480*180 | Inner compartment size (without battery) | 425*270*80 |
Chassis weight | 20KG | Running speed | 0--5km/h |
Ground clearance | 70mm | Protection class | IP54 |
Maximum span | 250mm | Maximum load | 15KG |

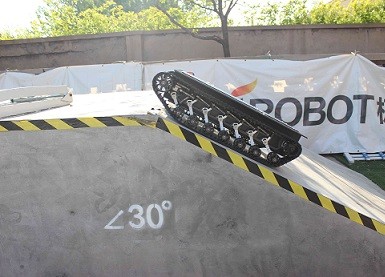

Maximum climb | 30° | Vertical span | 120mm |
Track material | rubber (embedded with Kevlar) | width | 80mm |
Shock absorber system | Christie*14 shock absorption | Main material | 304 stainless steel/alloy steel plate/aluminum/polymer material |
Surface treatment | black plastic spraying (frosted) | Driving wheel diameter | 70mm |
Rated torque | 6.6N·M | Transmission ratio | 10 |
Operating temperature | -20°-- +60° | Drive form | Left and right independent drive Track differential steering |

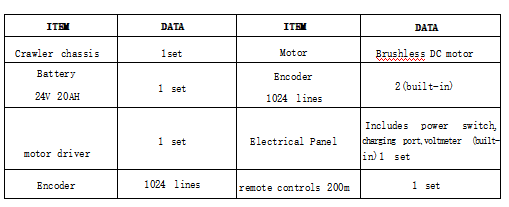

Electrical parameters
ITEM | DATA | ITEM | DATA |
Power supply voltage | DC24V | Motor | Brushless DC motor |
Whole machine power (max) | 138W*2 | standby power | ≤50w |
Battery | 24V 20AH | Communication Interface | Standard CAN 232 Serial Port |
Brake type | Power-off brake type | Braking voltage | DC24V |
Encoder | 1024 lines | Drive model | JCDBL2430-2E |
Remote control distance | 500m (visually) | Number of remote control channels | 9T (3T used) |

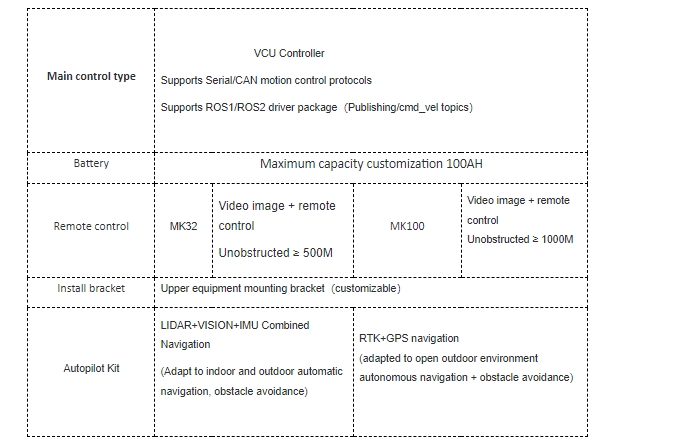

Optional configuration
Main control type | VCU （Differential） | ||||
Driver | JCDBL2430-2E | ||||
Battery | 24V 20AH | 24V 30AH | |||
Charger | 5A | 10A | |||
Remote control | AT9 | JC9One-handed operation | JC9Video all-in-one | Customized control box | |
Install bracket | |||||
Can be upgraded | Heighten | ||||
